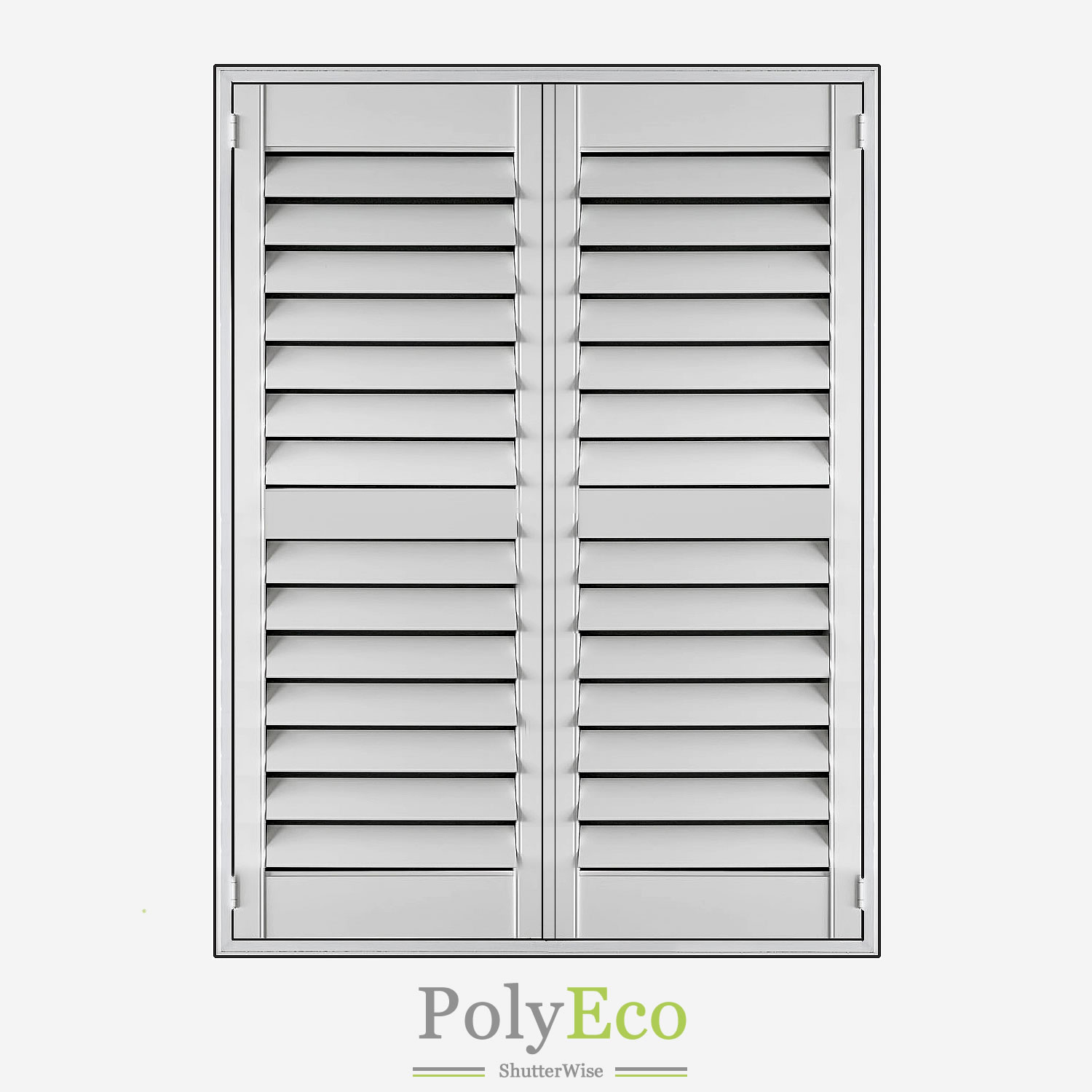

DIY PVC Plantation Shutters - PloyEco Assembled

DIY PVC Plantation Shutters – PolyEco Assembled



$259.00 / m2

DIY PVC Plantation Shutters – PloyEco Assembled

  • Resistant to warping, cracking and water
  • Easy to clean
  • Environment friendly water-based paints, Australian SGS VOC free tested.
  • Outstanding Insulation
  • Low maintenance
  • Made to fit any size or shape
  • Most popular 89 mm blades available
  • Delivery in 8-10 weeks from order

10 YEARS

Structural Warranty

3 YEARS

Paint Warranty

8 – 10 WEEKS

Delivery Timeframe

INTERNATIONAL

Imported Product

  • Shutter Specification
SKU: IMP-S-PVC-PE Categories: , Tags: , , , ,
Compare
Share:

Enter Measurements

mm
mm
m2
$0.00
Buy and Collect Points

Points and Rewards

Purchase this product now and collect reword points!

Read more?

  • Shutter Location

    Frame Type

    Choose your Frame Type.

    Measurement Guide

    How many panels does your custom layout have?

    How many panels does your custom layout have if it's more than 10?

    Choose Color

    Blade Type

    Frame Style

    Choose your Recess mount Frame Style. We offer (LRTB or LRT frame styles) for Recess Fit - L and Z frame types.

    Choose your Face Fit mount Frame Style. We offer (LRTB or LRT frame styles) for Face Fit - L frame type.

    Recces Mount window with (Hangstrip) has no frame style options.

    Panel Layout

    Select from our predefined panel layout configuration or enter your custom setup preference.

    How many panels does your custom layout have?

    How many panels does your custom layout have if it's more than 10?

    Please use only letters and spaces.  Panels: Left (L) or Right (R) or Panel (D) D-Mould and T-Post (T).
    Example: [←]|[←]|[→]   (L): Left Panel  -  (T): T-Post - (L): Left Panel - (D): D-Mould on (R): Right Panel
    Code: LTL-DR

    T-Post Single Configuration

    T-Post Configuration

    Select your T-Post layout configuration for the Recess Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Recess Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Face Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Face Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Recess Fit window with (Hangstrip Style).

    Select your T-Post layout configuration for the Recess Fit window with (Direct Mount Style).

    Enter you T-Post One (1) measurement in mm only.

    How to Measure Window?

    How to measure your T-posts position?

    • The maximum individual Panel Width is 850mm. For larger windows T posts can be used with any frame type where the size of the window requires three, four or six panels etc. They are used to divide windows vertically to match window design and cover large spaces.
    • When ordering your shutters, you can choose Standard Panel widths – all panels are made equal sizes or ‘Custom’.
    • Below are measuring instructions if you choose custom sizes.

    Recessed (In) fit – L Frame & Z Frame

    T-Post 1 = Inside edge of window frame to centre of first T-Post
    T-Post 2 = Inside edge of window frame to centre of second T-Post

    Face (Out) fit – L Frame

    T-Post 1 = Outside edge of architrave to centre of first T-Post
    T-Post 2 = Outside edge of architrave to centre of second T-Post

    Number of sides of the frame

    Shutters with frames have 3 or 4 sides, which will be noted in order sheet, All of frames can be made in three or four sided frames. Most common is a four-sided frame. LRBT stands for Left, Right, Bottom and Top frames.

    T-Post Multi Configuration

    T-Post Configuration

    Select your T-Post layout configurations for the Recess Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Recess Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Face Fit window with four side frame style (LRTB).

    Select your T-Post layout configuration for the Face Fit window with three side frame style (LRT).

    Select your T-Post layout configuration for the Recess Fit window with (Hangstrip Style).

    Select your T-Post layout configuration for the Recess Fit window with (Direct Mount Style).

    Enter you T-Post One (1) measurement in mm only.

    Enter you T-Post Two (2) measurement in mm only.

    How to Measure Window?

    How to measure your T-posts position?

    • The maximum individual Panel Width is 850mm. For larger windows T posts can be used with any frame type where the size of the window requires three, four or six panels etc. They are used to divide windows vertically to match window design and cover large spaces.
    • When ordering your shutters, you can choose Standard Panel widths – all panels are made equal sizes or ‘Custom’.
    • Below are measuring instructions if you choose custom sizes.

    Recessed (In) fit – L Frame & Z Frame

    T-Post 1 = Inside edge of window frame to centre of first T-Post
    T-Post 2 = Inside edge of window frame to centre of second T-Post

    Face (Out) fit – L Frame

    T-Post 1 = Outside edge of architrave to centre of first T-Post
    T-Post 2 = Outside edge of architrave to centre of second T-Post

    Number of sides of the frame

    Shutters with frames have 3 or 4 sides, which will be noted in order sheet, All of frames can be made in three or four sided frames. Most common is a four-sided frame. LRBT stands for Left, Right, Bottom and Top frames.

    Mid-Rail Configuration

    Mid-Rail Configuration

    Please confirm if your entered height is over (1600 mm)?

    Select your Mid Rail/Divider configuration for Recess Fit with four side (LRTB) frame style.

    Select your Mid Rail/Divider configuration for Recess Fit with three side (LRT) frame style.

    Select your Mid Rail/Divider configuration for Recess Fit with (Hangstrip). *Hangstrip has no frames.

    Select your Mid Rail/Divider configuration for Recess Fit with (Direct Mount).
    * Direct mount has no frame and it mounts directly to the windows own frame.

    Select your Mid Rail/Divider configuration for Face Fit with four side (LRTB) frame style.

    Select your Mid Rail/Divider configuration for Face Fit with three side (LRT) frame style.

    Select your Mid Rail/Divider configuration for U Channel. *U Channel has no frame.

    Enter you Mid-Rail One (1) measurement in mm only.

    Enter you Mid-Rail Two (2) measurement in mm only.

    Important
    Important
    Important
    Important
    Important
    Important
    Important

    How to Measure Window?

    How To Measure Your Mid Rail Position

    • Mid rails provide strength to your shutters and allow you to operate the top blades independently from the bottom blades.
    • Customers are agreed to give up warranty claims if panels over 1800mm without mid rails.
    • The most common placement for a mid-rail is in the exact center of the panel.
    • It is also common to place the mid rail at a natural break.
    • For recessed fit L or Z Frame, measure from the bottom of the inside of your window frame to the center point of the desired location of the mid rail.
      For face fit L Frame measure from the bottom of the architrave to the center point of the desired location of the mid rail.

Description

DIY PVC Plantation Shutters – PloyEco Assembled are PVC shutters that panels have assembled, all you need to do is joint the frames and attached the panels to the frames.

DIY PVC Plantation Shutters – PloyEco Assembled are a classically elegant yet practical window covering. As well as providing an excellent way to control light and airflow in your home, good insulation, they are low maintenance, allergy-free and easy to use.

Why Choose DIY Plantation Shutters for Your Home or Office?

ShutterWise is an Australian company that offers locally made plastic plantation shutters with fast delivery and an extensive warranty. We pride ourselves on our excellent after-sale support in addition to offering the best prices on high-quality timber and PVC plantation shutters. Our PVC shutter products are available as flat-packed PVC plantation shutters DIY kits or as fully assembled PVC window shutters, delivered nationwide within 10-15 working days. Our commitment is to quality, eco-friendliness, and affordability.

Customisable & Flexible

Plantation shutters come in a wide array of styles and can be customised to seamlessly fit into your home décor. No matter their size and shape, these made to measure shutters can be designed to offer complete or partial coverage for all window types.

Modern plantation shutters are made from hard-wearing materials like PVC and wood. As a result, they don’t easily crack or peel and remain in good shape even with minimal maintenance. The best way to clean plantation shutters is with the brush attachment of a vacuum cleaner and regular wiping with a soft cloth. Unlike curtains and blinds, you don’t have to worry about machine washing them or damaging delicate materials when cleaning shutters.

Plantation shutters are made using durable materials. Unlike curtains and drapes, exposure to the sun, dust and changing temperatures won’t cause wear and tear to shutters. Our timber and plastic window shutters can stand up to high humidity and effectively resist fading and cracking.

Plantation shutters are a great solution for insulating your home. They help keep your home cool when temperatures rise and warm during the colder months. This is because they’re installed in such a way that they seal right up against the window frame, preventing inside air from escaping and outside air from entering. This improves energy efficiency and lowers utility bills.

Apart from privacy and security, the extra buffer of shutters between your windows and the outside is a great way to reduce outdoor noise. Cars honking or noise from a nearby construction site can be reduced with the sound insulation properties of plantation shutters. Shutters help lower noise levels because of their noise-absorbing materials, tight-fitting frames and thick slats.

Unlike draperies which attract allergens, including pollens, dust and pet dander, plantation shutters have accessible, wipe-clean surfaces. If someone in your home has allergies, shutters are ideal.

As PVC shutters seal perfectly with your window frame, raising or lowering the slats affords you complete privacy so no one can look in. Windows are also the easiest way to break into a house, and shutters act as an additional barrier to entry.

These window coverings are permanent attachments to your home. Unlike curtains, draperies and blinds, they remain with the home even when it’s sold. Shutters are considered a selling point, allowing you to recoup their cost when it comes time to sell.

No matter the latest window covering trend, shutters are timeless. They complement most interior design styles, from rustic and minimalist to contemporary and traditional, and make windows look sophisticated.

Plantation shutters fit snugly inside window frames, leaving no space for light to get inside. The slats can be opened and closed to let in light. That means you don’t have to worry about the glare on your TV screen when the louvres are down, even when the sun is shining.

Window coverings with low-hanging cords can be a choking hazard for both children and pets. When you install plantation shutters using a DIY plantation shutters kit, you can have peace of mind knowing your little ones and furry friends are safe because these window treatments don’t have cords.

What is not included:

  • Window check measure service.
  • Shutter panels assembly service.
  • Shutter panels installation service.
  • In person assembly, installation, support or assistance of any kind.
  • Tools required for assembly and installation, or any other materials of any kind.

Optional service/s:

  • On-site window check measure service offered to our local customers via appointment only.
  • Shutter panels assembly service offered to all customers at extra cost.
  • Shutter panels installation service offered to our local customers only, at extra cost.

Place Your Order Today

ShutterWise can deliver DIY plantation shutters Australia wide. Please call us on 1300 868 987 or contact us online today to order a bespoke DIY plantation shutters kit.

Commonly Asked Questions

When it comes to shutters, PVC and aluminium options are both great. While aluminium is the stronger and longer lasting material, PVC shutter units are better at maintaining more comfortable indoor temperatures.

PVC shutters can go yellow if they’re constantly exposed to harsh sunlight. ShutterWise shutters use anti-yellowing elements in painting thus slowing the time of yellowing. We can recommend ways to minimise the likelihood of yellowing occurring.

Yes, they can. ShutterWise is a leading manufacturer of made to measure shutters. We can help you make your own plantation shutters just the way you want them. This is not available online, you need a special order.

Yes, PVC shutter blinds are a good choice for window frames in both households and offices, as they can enhance the décor of any space and provide better control over how much light enters a room. Having said that, PVC shutter tend to be more commonly installed in residential properties than commercial workplaces.

Plantation shutters DIY kits normally take 5-10 business days to arrive at their destination and take approximately 1-2 weeks to manufacture.

Shutter Measuring Specifications

Shutter Width and Height Specification
Shutter Width and Height Specification

Shutter Specification

Product Painting Colors Process Application
Timber Water-based White Finger Joint Interior
PVC Water-based White Extruded In/Exterior
Shutter Specification Width
Shutter Width

Panel Width Limitation

Materials Min width Max Width
Timber 300mm 950mm
PVC 300mm 900mm
Shutter Specification Height
Shutter Height

Panel Height Limitation

Product
Min Height Max Height  Optional Mid rail required
Timber 400mm 2800mm <1800 1801-2400mm
PVC 400mm 2500mm <1600 1601-2100mm

Panel width and height over maximum limitation or without mid rails, buyers are defaulted to give up warranty.

Shutterwise: Warranty Policy

Additional information

Product

PVC Plantation Shutter
Manufacturer

Shutter Wise
Brand

PVC PloyEco
Material

PVC
Color

Snow White
Louver Options

64 mm, 89 mm
Max Panel Width

850 mm
Mid-Rail Request

1600 mm
Origin

Imported Shutter
Delivery

8-10 Weeks Delivery
Warranty

10 Years Structural Warranty, 3 Years Paint Warranty
